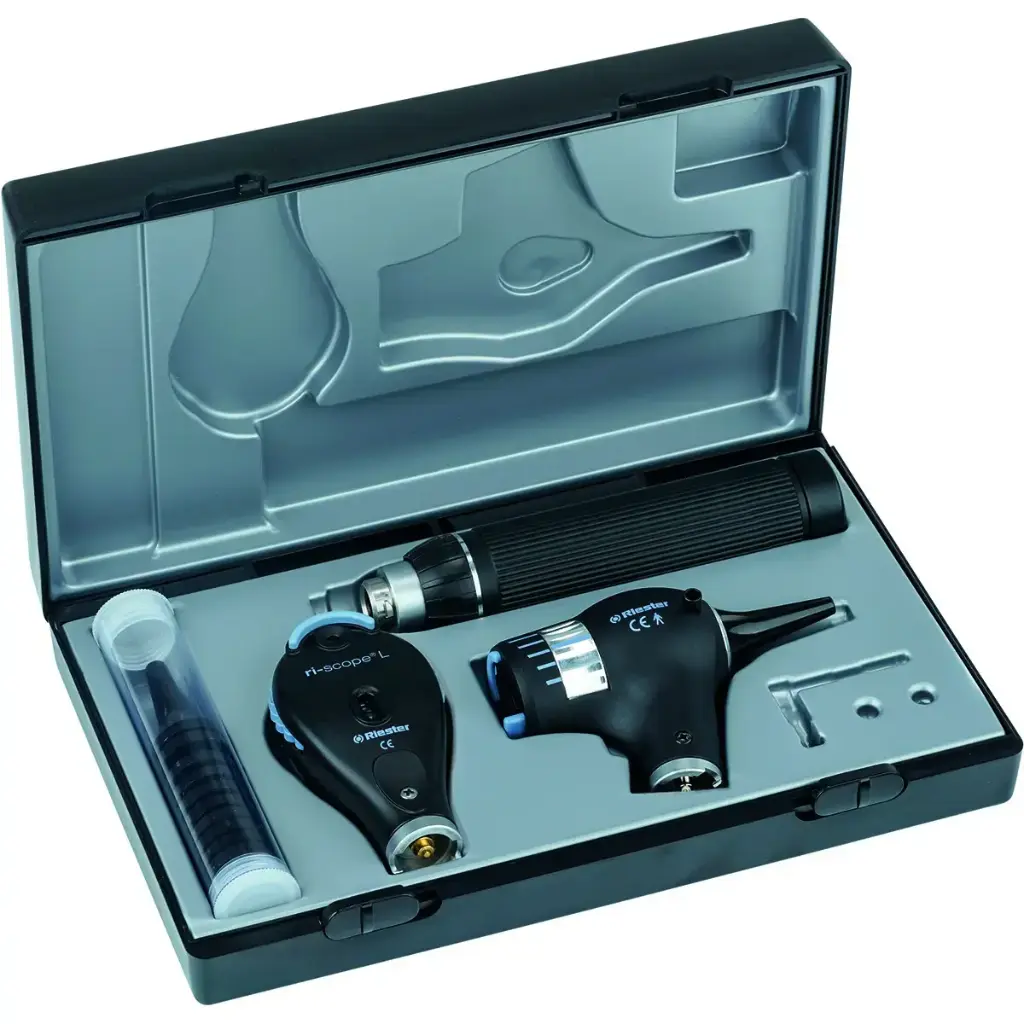

EliteVue Diagnostic Set
Code: MD01129
EliteVue® Macro Otoscope & ri-scope® L2 Ophthalmoscope
This EliteVue® Diagnostic Set from Riester combines a ri-scope® L2 Ophthalmoscope (with LED bulb, 2.5 V, with C-handle for 2 alkaline batteries) with the superior macro view otoscope, the EliteVue®, giving you everything you need in a high-spec Diagnostic Set that will last you a lifetime!
EliteVue® Macro Otoscope
With 5x magnification, 100,000 hours’ LED life, 8.5 hours battery run-time, single-handed operation and a full view of the tympanic membrane, amongst other benefits, you will not regret investing in this Diagnostic Set.
Why Choose EliteVue®?
| Feature | Riester EliteVue Macro-Otoscope | Riester ri-scope® L3 Otoscope | Market Leader Macro Otoscope |
| Illumination | XL & LED; 3.5V & 2.5V | XL & LED; 3.5V & 2.5V | HAL, XL & LED; 3.5V |
| LED Lifetime | 100,000 hours | 100,000 hours | 80,000 hours |
| CRI (R9) | 92 – 95 | 92 – 95 | 90 – 93 |
| Colour Temperature | 4,200K | 4,200K | 3,500K |
| Magnification | 5x | 3x (4x with additional lens) | Less than 4x |
| Field of View | 11 mm (0.43 in) | 5.5 mm (0.22 in) | 10mm (0.38 in) |
| View | Full view of the tympanic membrane | Partial view of the tympanic membrane | Partial view of the tympanic membrane |
| Fibre Optic | Yes | Yes | Yes |
| Focal Depth Adjustable | Yes (+5to-5) | No | Yes |
| Specula Ejector | Yes SpecEjec®– single handed operation | Yes SpecEjec®– single handed operation | No Requires 2 hands to eject specula and risk of cross contamination |
| Suitable for Pneumatic Otoscopy | Yes | Yes | Yes – additional cost |
| Handles | Electronic rheostat, continuously variable, single-finger operation, automatic switch-off after 180 sec | Electronic rheostat, continuously variable, single-finger operation, automatic switch-off after 180 sec | Mechanical rheostat |
| Power Sources | Desk charger, plug-in charger, alkaline batteries, wall station | Desk charger, plug-in charger, alkaline batteries, wall station | Desk charger, plug-in charger, wall station |
| Handle Sizes | AA, C | AA, C | AA, C |
| Battery Run-Time | 8.5 hours (fully charged) | 8.5 hours (fully charged) | 7.0 hours (fully charged) |
| Charging Time | < 2 hours (Li-ion) | < 2 hours (Li-ion) | > 2 hours (NiCad) |
| Single-Hand Operation | Yes | Yes | No |
| Eyebrow Rest | Yes | Yes | Yes |
| Throat Illuminator | Yes | Yes | Yes – additional cost |
| Warranty | 2 Years | 2 Years | 1 Year |
The EliteVue offers twice the field of view and 66% greater magnification compared to standard otoscopes*.
The EliteVue offers a significantly improved view of the auditory canal and tympanic membrane, enabling more efficient diagnosis and enhanced patient outcomes.
Suitable for throat illumination.
EliteVue is compatible with ri-scope® L handles and power sources as well as the ri-former wall diagnostic station.
*at a distance of 15 mm (0.59 in) between landmark and distal tip of the specula.

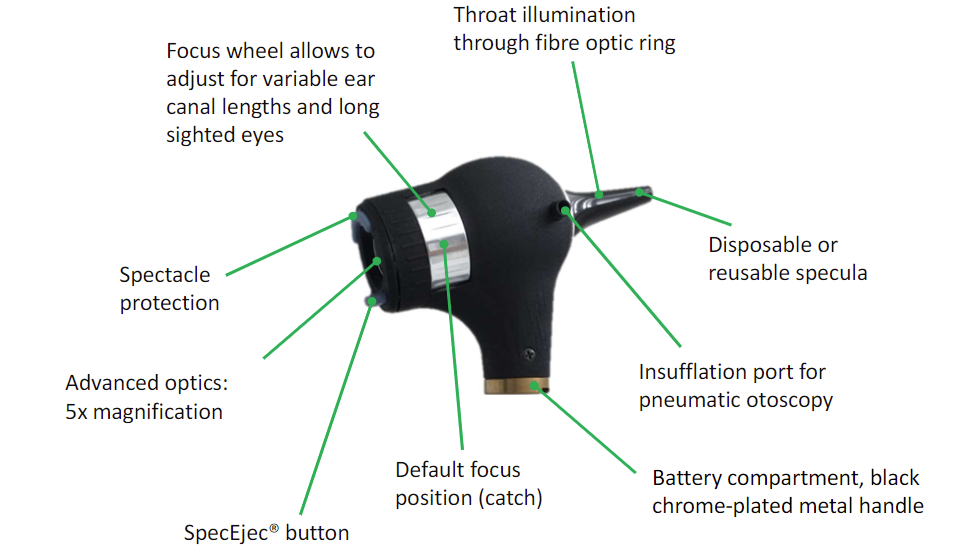

Features
- High-performance LED illumination (4,000 Kelvin, CRI = 92)
- More than 5-fold magnification
- Twice the field of view
- Complete view of the tympanic membrane
- Reflection-optimized high performance glass optics
- Wheel to adjust focal depth
- Easy to operate SpecEjec® specula ejection device at the rear side of the otoscope to avoid contamination
- Suitable for pneumatic otoscopy (supplied without ball)
Benefits
- Twice the field of view provides a complete view of the tympanic membrane and eliminates the need for panning the otoscope
- 66% greater magnification, compared to standard otoscopes*, provides a greater, better and sharper view of the auditory canal and the tympanic membrane
- An improved view of the auditory canal and tympanic membrane supports a more efficient diagnosis**
- LED illumination provides a low-reflection, bright and white light superior to other types of illumination
- Suitable for throat illumination
*At a distance of 15 mm (0.59 in) between landmark and distal tip of the specula. **Compared to ri-scope® L otoscope.
