Vitalograph copd-6 USB Respiratory Monitor
Code: MD05972

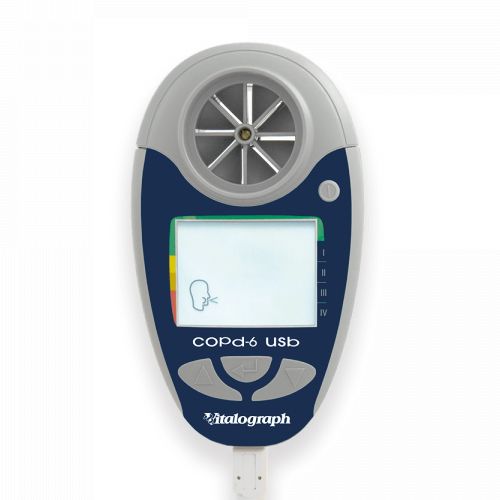

Vitalograph copd-6 USB Respiratory Monitor
The Vitalograph copd-6 identifies those at risk of COPD at the pre-symptomatic stage. Generates reports via USB connection and Vitalograph Reports software. The device screens out those whose FEV1 is normal.
Features:
Monitors COPD patients using their ‘number’, the obstructive index which is based on a percent of predicted
Facilitates ‘case selection’ so that spirometry can be focused on those likely to be diagnosed with COPD
Screens out anyone with normal FEV1 without the risk of false COPD negatives
Displays FEV1, FEV6, ratio and % predicted, obstructive index, COPD classification and lung age
Displays the GOLD COPD classification (stage I – IV) to help recognize the need for a change in the patient’s management plan
Automatically sends data after each blow
Can also send session data
Large, easy-to-read display
Specifications:
Model: 4000
Dimensions: 10.9cm (L) x 6.3cm (W) x 4.2cm (H)
Flow Detection Principal: Stator rotor
Accuracy: Better than ± 3%
Back Pressure: Less than 0.15kPa/L/second @ 14L/s
Measurement Range: 0 – 9.99 L BTPS
Power Supply: 2 x AAA batteries
Battery Life: 3 months of use, 3 tests per day
Quality Check: Slow start of test (Vext>5%) or a cough detected in the first second
Performance Standards & Guidelines: ATS/ERS 2019, ISO 23747:2015, ISO 26782:2009
Communications: USB2.0/3.0
PC Requirements: Windows® 7, Windows® 8 or Windows® 10
Auto Power Down Time: 2 minutes
