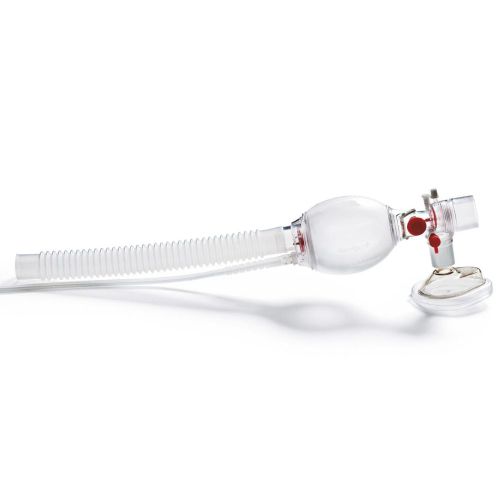

Ambu Spur II Infant Resuscitator with Neonate Mask Size 0

Ambu SPUR II Infant Resuscitator with O2 Tube Reservoir & Size 0 Paediatric Face Mask (with expiry date)

The Ambu SPUR II Infant Resuscitator is designed for manual ventilation of patients. The Ambu SPUR II makes visual feedback during resuscitation extremely easy. The Ambu SPUR II bag is also highly responsive, with minimal mechanical resistance. The Ambu SPUR II is also ideal for fast-paced manual ventilation due to the high recoil of the bag.

Features:

Phthalate-free material, DEHP free, latex-free.
Single-shutter valve system for reliable functionality.
Integrated handle for user comfort and uniform, reliable compression
Thin-walled compression bag allows for lung compliance and "feel"
SafeGrip surface for secure handling and also provides a solid grip in stressful environments - even during extended ventilations
M-Port allows sidestream measuring of etCO2 or quick medication delivery without disconnecting the Ambu SPUR II from the ET tube
Easy attachment of manometer and PEEP valve
MR Conditional

Specifications:

Stroke volume: 150ml
Resuscitator volume: 220ml
Dimensions (Length x Diameter): 168mm x 71mm
Weight incl. reservoir O2 tube/mask: 140g
Dead space: <6 ml
Inspiratory resistance without O2: Max. 0.10 kPa (1.0 cm H2O) at 5 l/min
Expiratory resistance: Max. 0.2 kPa (2.0 cm H2O) at 5 l/min
Bag reservoir volume: 300ml
Tube Reservoir (Length x Diameter x Volume): 245mm x 22mm x 100ml
Patient connector: Outside: 22mm male (ANSI/ISO)
Patient connector: Inside: 15mm female (ANSI/ISO)
Expiratory connector (for PEEP valve attachment): 30mm male (ISO)
Forward and backward leak: Not measurable
M-Port: Standard Luer LS 6
Recommended operating temperature: -18°C to +50°C
Storage: Tested at -40°C and + 60°C according to EN ISO 10651-4

Packaging:

All Ambu SPUR II Resuscitators come in individual, resealable plastic carrying bags, complete with one or more masks and any special accessories. The bags themselves are colour-coded for quick and easy identification of infant, paediatric, and adult sizes.
