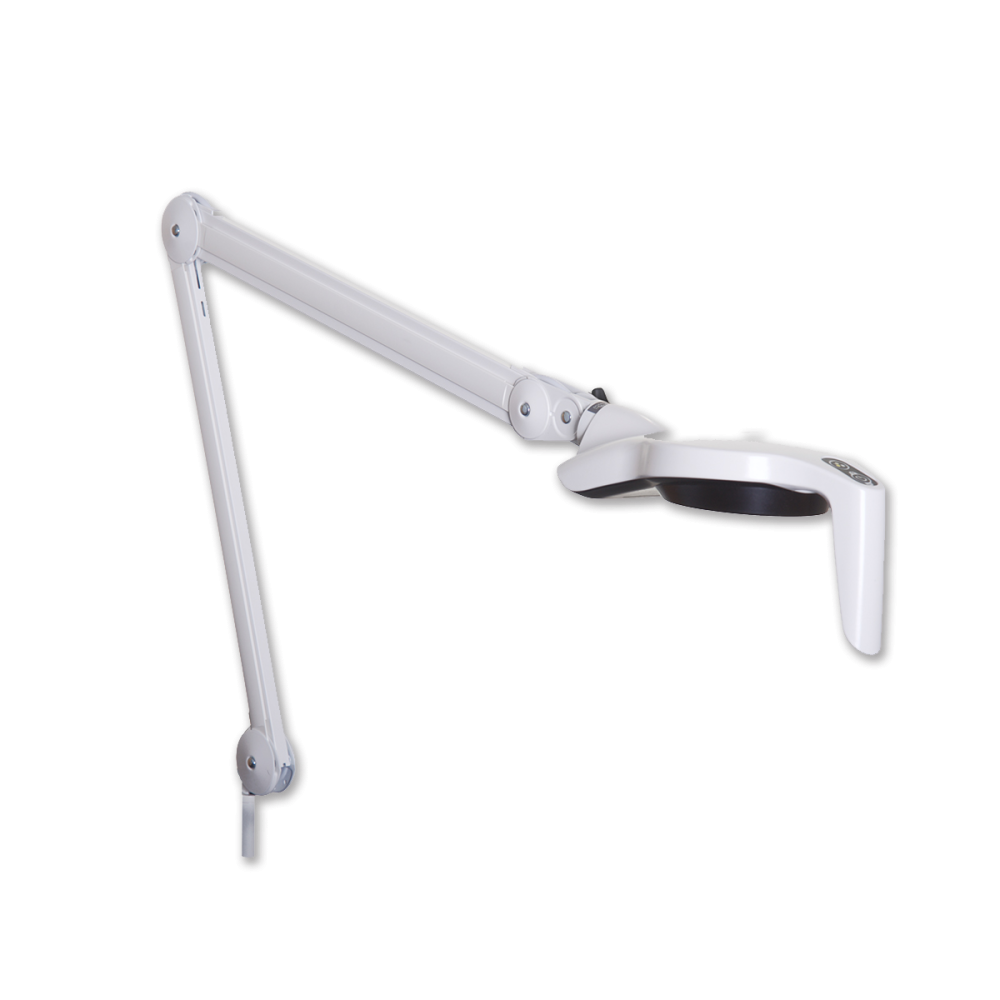

Luxo LHH LED G2 Exam Light CCT Version with Ceiling Mount

Luxo LHH LED G2 Examination Light CCT Version

LHH is a medical examination luminaire with excellent light output, mounted on a flexible self-balancing arm with frictionless horizontal and vertical movement. With CCT (correlated colour temperature).
It is the highly flexible self-balancing arm in conjunction with excellent light output that has given our LHH diagnostic luminaires their vast popularity among the medical profession. The frictionless horizontal and vertical movement and the ease of use make the LHH the most flexible examination luminaire on the market – and the best in its class.
The use of modern LED light sources has made it possible to reduce the size of the new lamp head, compared with the original. The reduced size and new LED technology provide for even better viewing conditions and unrivalled performance.

For Demanding Viewing Conditions

LHH is designed especially for demanding viewing conditions that require exceptionally good light such as medical examination and minor procedures. It has widespread applications throughout the health sector, in hospitals, health centres and consulting rooms.
The new LHH is a natural development of our original medical examination luminaire, which is in daily use by medical professionals all over the world.

Exact positioning

LHH has a covered spring balanced arm for easy cleaning and safe and easy positioning. The flexibility and precision of the spring balanced arm mean that LHH can be positioned exactly where the light is required.
The light sources are positioned well inside the lamp head, in order to avoid glare. The switch is positioned exactly where the thumb will find it when the hand grabs the handle. This makes handling intuitive and easy. The direction of the handle indicates the direction of the beam. LHH is fully dimmable as standard.

Approved Medical Device

LHH is approved as a medical device according to:
IEC/EN 60601-1 Medical electrical equipment - Part 1: General requirements for basic safety and essential performance
IEC/EN 60601-1-2 Electromagnetic compatibility – requirements and tests.

All-metal construction

LHH is made of powder-coated metal, such as aluminium and steel. The light source is covered with tempered glass. This means that LHH can be cleaned with any detergent in use at a hospital, including acetone.

Easy replacement

The new LHH features the same arm construction and spigot as the traditional version. This means that all brackets and clamps can be reused with this new version.

Dimensions:

Net weight (kg): 3.5
Gross weight (kg): 3.758
Arm length (cm): 105

Optic:

Optic: SYM = Symmetric
Luxlevel at 1m: 25000

Light Technical Data:

Light source: LED
Number of lamps: 1
Colour rendering and colour temperature: CCT (3500-4500K, CRI>90)
Lumen Out: 947
MacAdam step: 3
Lumen/Watt:
