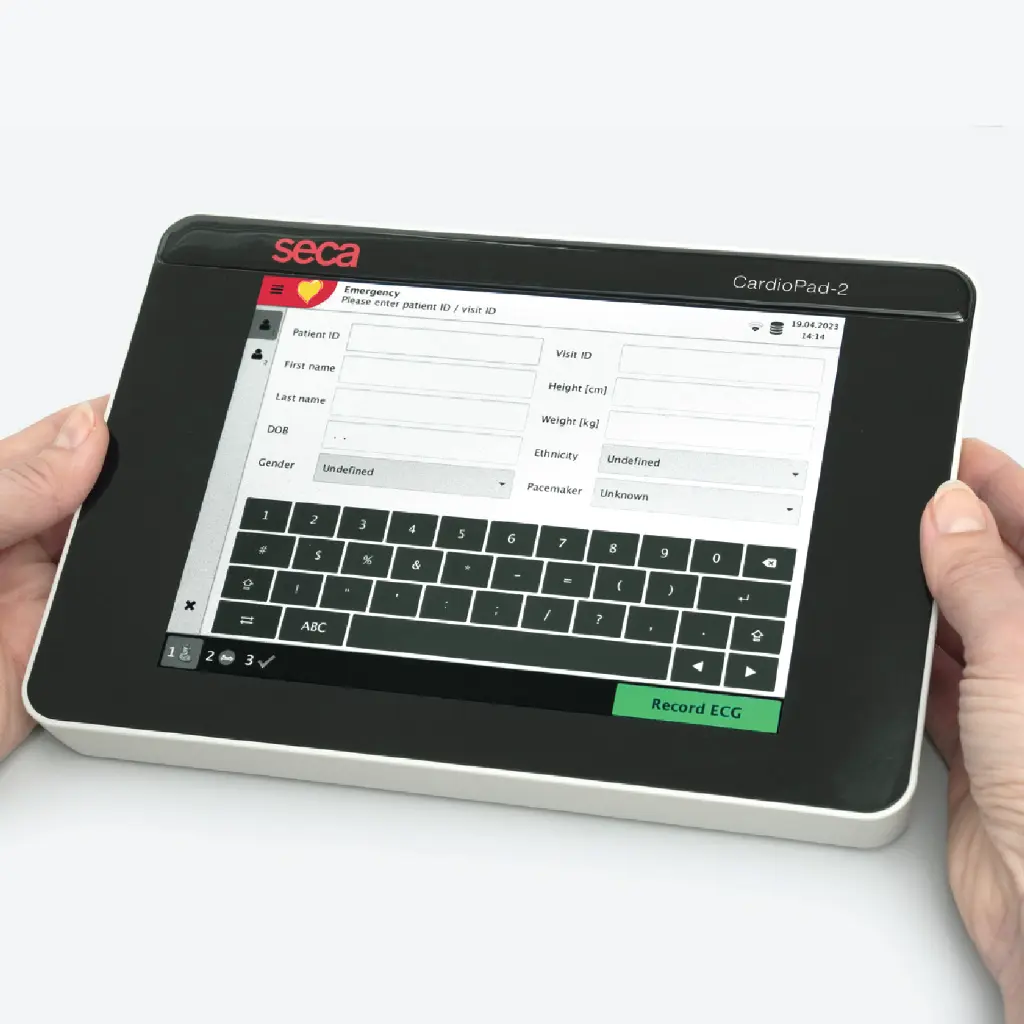

Seca CardioPad-2

The seca CardioPad-2 is equipped with a vast range of diagnostic functions like the CCAA (optional). The Culprit Coronary Artery Algorithm is used in emergency departments and outside the hospital whenever a fast decision on chest pain is required immediately. It locates the obstruction site in the coronary artery and thereby the size of the cardiac area at risk. The ETM Sport interpretation module is specially designed for athletes and is based on the Seattle Criteria. Furthermore, a large range of QTc formulas are provided, for example, Bazett, Fredericia, Fremingham or Hodges.

There are no limits on licences for this item and can be used across multiple PC’s. Seca does not automatically provide the software with this item as some customers do not require it. However, if the customer requests this from Seca, they can email them a link for free.

The ECG That Advises You

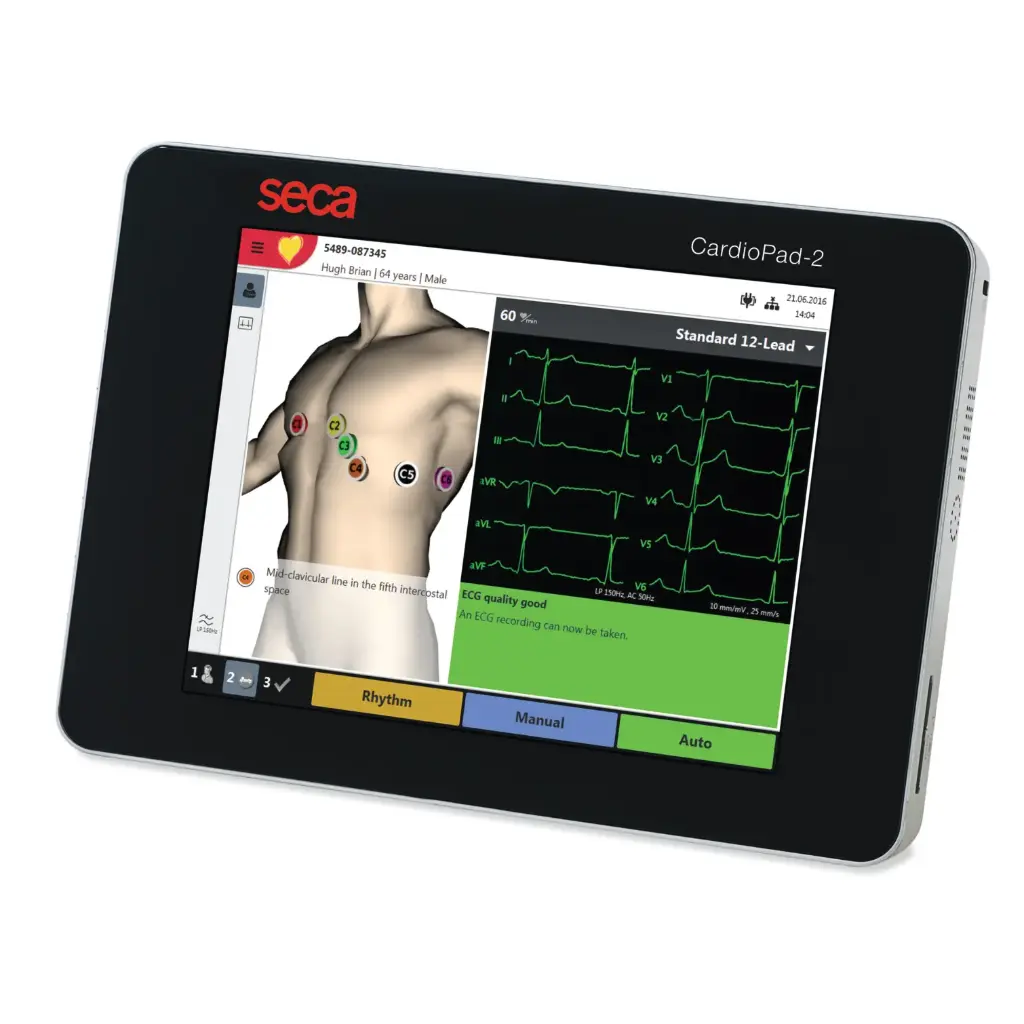

With the anatomical hookup adviser electrodes are always placed correctly. It shows a rotatable and zoomable 3D body with the correct positions of all ten electrodes. An overview of all 12 channels with colour-coded lead quality check safeguards every ECG acquisition. In case of a lead reversal, warnings and misplaced electrodes are immediately displayed before ECG acquisition.

Ultra-portable, Easy to Handle and Fast

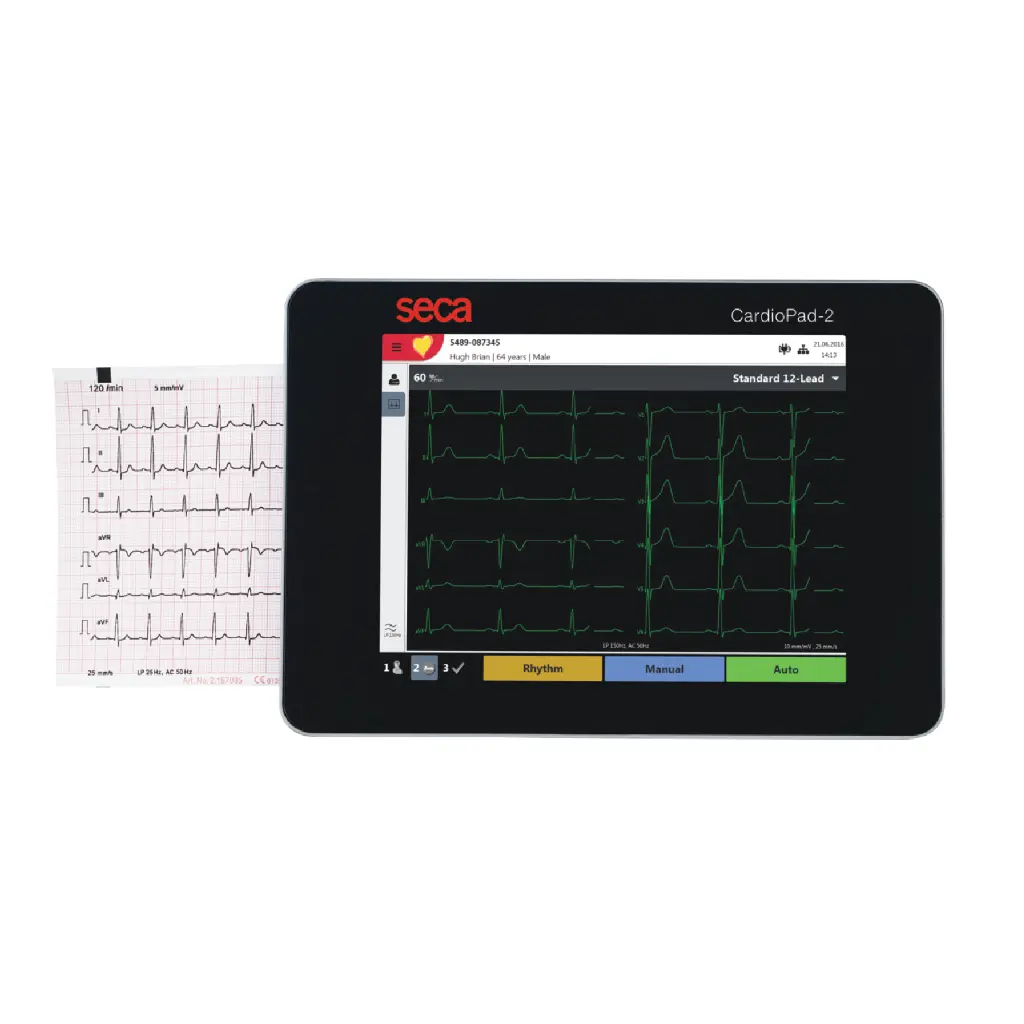

As the next generation of innovative and trendsetting seca CardioPad, it has become even lighter. Although it’s extremely compact, it features an in-built printer, renders 12 ECG traces simultaneously and is capable to process data to your EMR system. It is fully equipped and has all functions aboard to support fast, precise and comfortable cardiac diagnostics.

The data can be downloaded using Seca link software, alternatively, you can use a USB stick. With both options, a PDF file is created and this can then be added to the patients' record.

Features:

• Ultra-lightweight easy to use device, weighing only 1.1kg
• Compatible with all leading EMR systems – emis, SystmOne, Vision and others
• Wi-Fi connectivity and seca link software included as standard
• Anatomical hook-up adviser – helps to correctly place the electrodes
• Lead reversal, warnings and misplaced electrodes are immediately displayed before ECG acquisition
• High volume internal memory: storage of up to 350 ECGs
• Advanced ETM Interpretation, with ETM Sport (Seattle Criteria)
• Print function
• Built-in thermal printer
• QTc formulas = Bazett, Fredericia, Fremingham or Hodges
• Save function

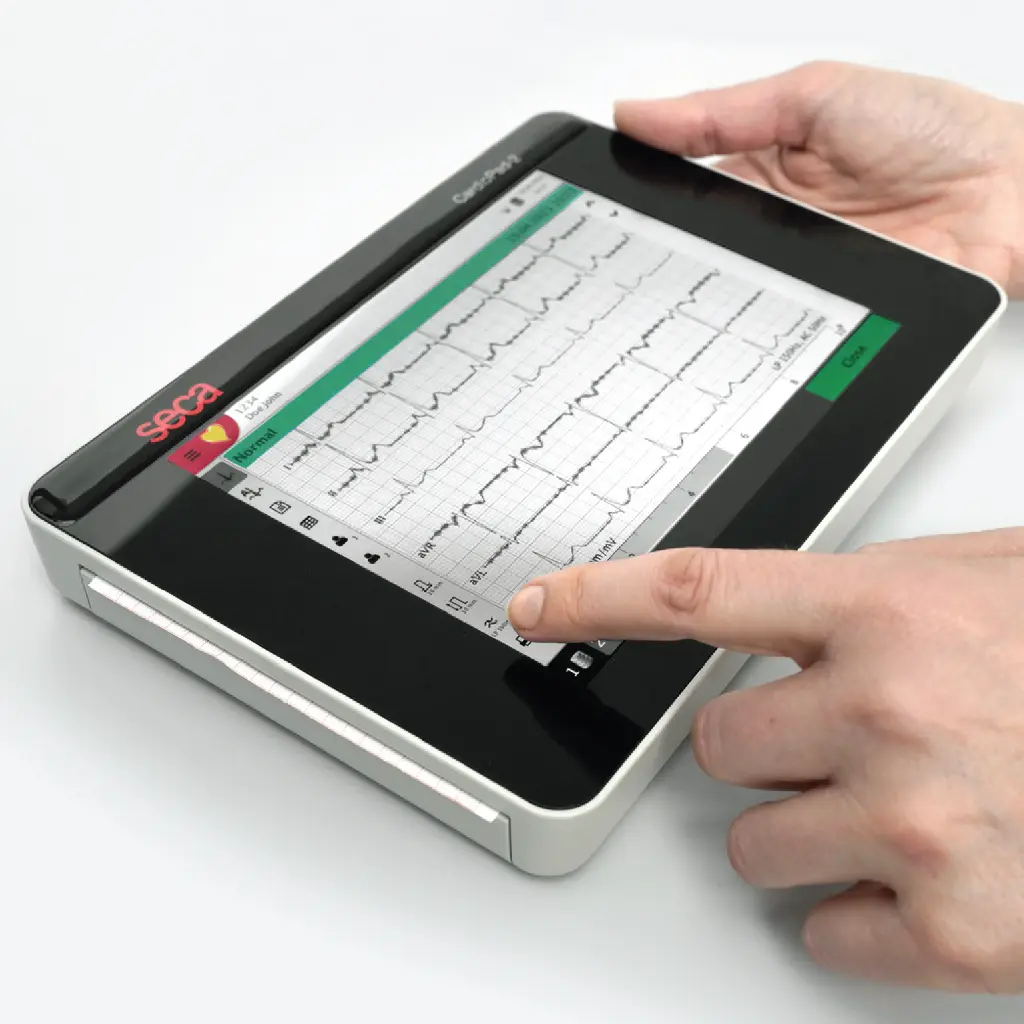

• Touch-display
• Preview screen feature
• ETM with ETM Sport Interpretation
• Wi-Fi and LAN
• Easy-to-clean
• Works best with computers running Windows 10

Technical Data:

Display: 8" colour high-resolution multi-touch screen with anatomical electrode placement.

Net weight: 0.2 sts (1.1 kg)

ECG Channels: 12

Product width: 230 mm

Product height: 160 mm

Product depth: 30 mm

Power supply: Rechargeable batteries and Mains adapter.
