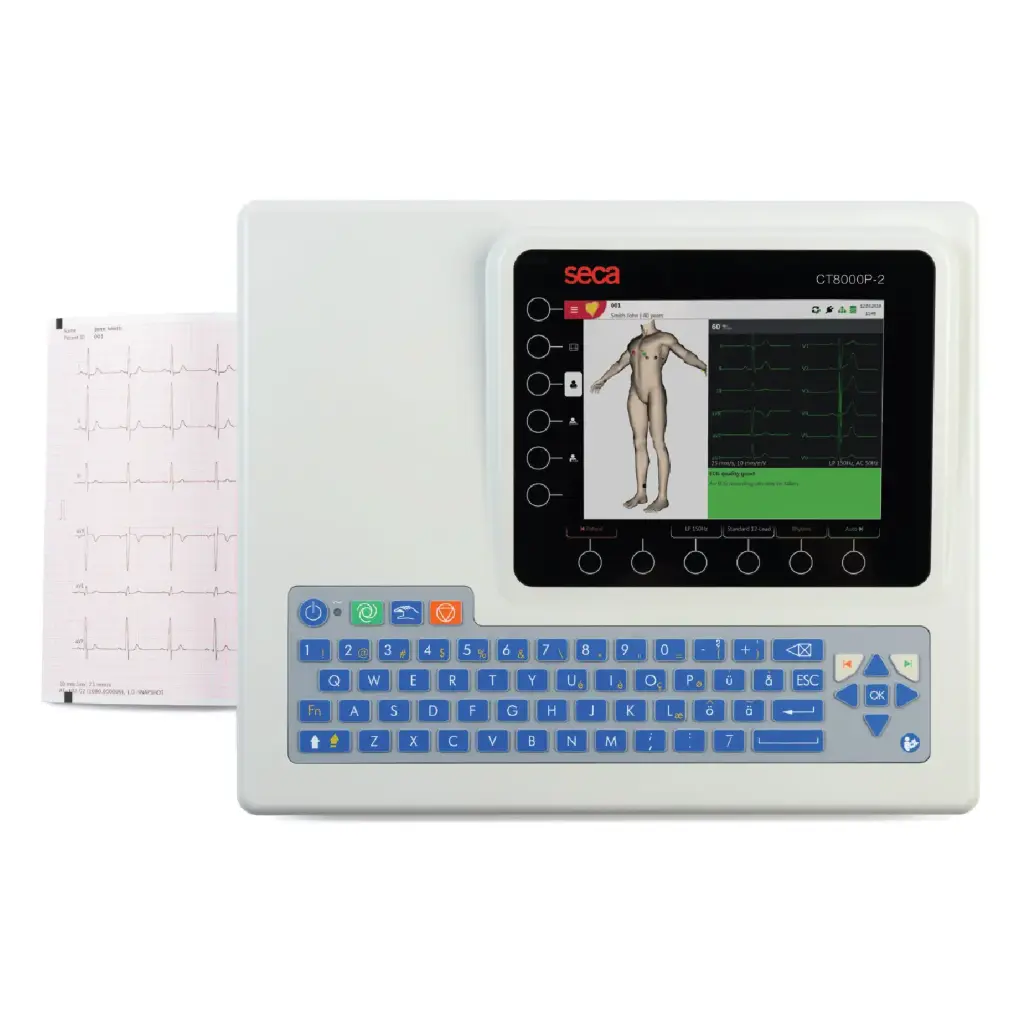

seca CT8000P-2 Advanced Interpretation ECG

A4 12 lead ECG machine with WiFi, advanced interpretation, 8" colour LCD and electrode placement adviser

The seca CT8000P-2 is a highly reliable and robust ECG machine with easy data access and fast transmission of ECG reports to your EMR system. It can receive and send data via Wi-Fi or LAN, preview all 12 ECG leads simultaneously on its generous high-resolution screen, has a large memory and an in-built A4 thermal printer. This enables you to process ECG records digitally and paperless or as A4 printout.

Expand Your Diagnostic Capabilities

The seca CT8000P-2 is equipped with a vast range of diagnostic functions and even provides a large selection of exercise ECG protocols for treadmills and ergometers (stress test ECG upgrade required). Thanks to very high sampling frequency and a large frequency band up to 250 Hz, the seca CT8000P-2 is suitable to perform paediatric ECG. The Software provides a large range of QTc formulas like Bazett, Fredericia, Fremingham or Hodges.

The ECG That Advises You

With the anatomical hookup adviser electrodes are always placed correctly. It shows a rotatable and zoomable 3D body with the correct positions of all ten electrodes. An overview of all 12 channels with colour-coded lead quality check safeguards every ECG acquisition. In case of lead reversal, warnings and misplaced electrodes are immediately displayed before ECG acquisition.

Features:

Robust and reliable: ideal for busy clinics.
Wi-Fi connectivity and seca link software included as standard – PDF ECGs automatically download to your pc following acquisition.
8" colour high-resolution screen with anatomical electrode placement (hook-up adviser function).
Compatible with all leading EMR systems – EMIS, SystmOne, Vision and others.
Brilliant signal quality – ideal for paediatric ECGs.
Capture and store 10 minutes of uninterrupted 12 lead data to document intermittent arrhythmias.
Lead reversal: Warnings and misplaced electrodes are immediately displayed before ECG acquisition.
Exercise ECG protocols for treadmills / ergometers (optional extra).

Functions:

Print function.
QTc interval - Ideal for Mental Health.
Preview screen feature.
ETM Interpretation – adult & paediatric.
Wi-Fi.
LAN.
QTc formulas = Bazett, Fredericia, Fremingham or Hodges.
Compatible with all EMR systems – emis, SystmOne, Vision and others.
Supplied with seca Link PDF download software.

Specifications:

Display: 8" colour high-resolution screen with anatomical electrode placement
Memory: Storage of up to 350 ECG’s
ECG Channels: 12
Net weight: 4.5 kg
Dimensions (W x H x D): 384 x 319 x 90 mm
Power supply: Rechargeable batteries, Mains adapter
