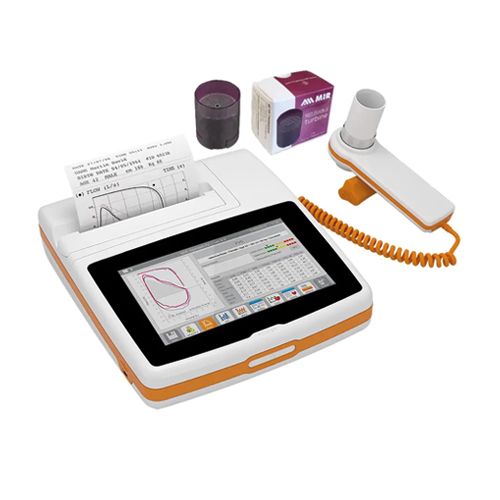

Spirolab New with Reusable Turbine

Spirolab

ATS/ERS Approved, the MIR Spirolab Spirometer with Oximetry option is the choice for healthcare professionals around the globe. It has quickly become a popular choice within a dominated market with its stylish and simple to use design. The attractive yet highly-functional spirometer has been designed with the user in mind and is the top of the range in Spirometry solutions from MIR.

This Portable, Desktop and PC-Based Spirometer features a clear 7-inch Touchscreen and is perfectly suited to GP Practices, Surgeries, Hospitals and Asthma Clinics, with its fast and silent built–in thermal printer with customizable printout format. Direct external print is also available via PC software.

Real-time testing is also available on PC via USB and Bluetooth, working with Winspiro PRO and Spiro Connect and also has EHR Connectivity to integrate with your patient database on your EHR/EMR (in HL7, GDT). The Spirolab is Lightweight for easy mobility and includes a free carrying case and long life Rechargeable Battery. It has Calibration Software embedded on the device with printable calibration report.

A large selection of Predicted Sets (including GLI) and Predicted Values (including comparison %Pred, Z-score and LLN) are available in Stand-Alone mode and PC mode. Real-time animation provides younger patients and those with additional needs with a “Paediatric Incentive” to improve compliance during the test.

Additional Prevention During COVID-19 PandemicMIR devices are compatible with the use of disposable in-line filters as recommended by the ERS.

For those who cannot switch to Remote Patient Monitoring and Homecare but still need a physical presence of the patient in the healthcare facilities, the ERS and many other Respiratory Associations worldwide do recommend additional safety precautions during testing.

MIR devices are compatible with the use of disposable in-line filters combined with disposable turbine flow meters, as recommended by the ERS statement on lung function during COVID-19. Use of a complete disposable kit (bacterial/viral filter + turbine + mouthpiece) ensures device protection, avoids cross-contamination and protects patient and healthcare personnel from aerosolized droplets in the environment. The usage of a completely disposable kit does not affect the spirometry test results.

The filter can be plugged in directly to the turbine sensor flowmeter. For a more comfortable test, it is possible to plug a cardboard mouthpiece to the antiviral filter.

Features:

REAL-TIME TEST
Spirometry: FVC, VC, IVC, MVV, PRE-POST Bronchodilator comparison.
Oximetry (optional): Spot test (SpO2, Pulse).
CARRY EVERYWHERE
LCD 7? Display, long battery life, large internal storage, carrying case included.
PC CONNECTION
Real time test on PC screen, connect with your EHR/EMR, back-up internal memory and more.
COMPLIANCE WITH ATS/ERS 2019
And other Standards including ISO 26782 (for Spirometry), ISO 23747 (for PEF), ISO 80601-2-61 (for Oximetry), and more.
ADDITIONAL PREVENTION DURING COVID-19
MIR devices are compatible with the use of disposable in-line filters as recommended by the ERS.
PREDICTED SETS AND PREDICTED VALUES
Large Selection of Predicted Sets (including GLI) and Predicted Values (including comparison %Pred, Z-score and LLN) in stand-alone mode.
EHR CONNECTIVITY
Via PC, integration with patient database on your EHR/EMR (in HL7, GDT).
PEDIATRIC INCENTIVE ON DISPLAY
Real-time animation on display to improve patient compliance during the test.
CALIBRATION SOFTWARE EMBEDDED
Available on device, with printable calibration report (no separate software required).
PRINTER EMBEDDED
Thermal printer. Paper size 112mm.

Specifications:

Power Supply: Rechargeable battery and mains.
Display Type: 7 inch colour touch screen LCD with 800×480 resolution.
Keyboard: Touchscreen.
Flow Sensor: Bi-directional digital turbine.
Flow Range: ±16L/s.
Flow Accuracy: ±5% or 200 mL/s.
Volume Accuracy: ±2.5% or 50 mL.
Dynamic Resistance: <0.5 cm H2O/L/s.
Temperature Sensor: Semiconductor (0-45°C)Test Available: FVC, VC, IVC, MVV, PRE-POST.
Measured Parameters: DTPEF, ELA, ERV, EVC, EVOL, FEF25, FEF2575, FEF50, FEF75, FEF7585, FET, FEV0.5, FEV0.5/FVC, FEV0.75, FEV0.75/FVC, FEV1, FEV1/FEF0.5, FEV1/FEV6, FEV1/FVC%, FEV1/PEF, FEV1/VC, FEV2, FEV2/FVC, FEV3, FEV3/FVC, FEV6, FIF25, FIF50, FIF75, FIV1, FIV1/FIVC, FIVC, FVC, IC, IRV, IVC, MVV, MVVcal, PEF, PIF, R50, RR, te, ti, ti/t-tot, TV, TV/ti, VC, VE, Vext.
Memory Capacity: 10,000 tests.
Product Type: Desktop.
Options: Spirolab, Spirolab with Oximeter, Spirolab with Oximeter & Reusable Turbine, Spirolab with Reusable Turbine.
Connectivity: Bluetooth, USB 2.0.

Contents:

Carrying case.
Power supply/battery charger.
USB cable.
1 Roll of thermal printer paper (for approx. 80 tests).
Noseclip.
PC Software license for 5 workstations.
Finger Probe (with Oximetry Options).
