Spirobank II Smart BLE + Oxy

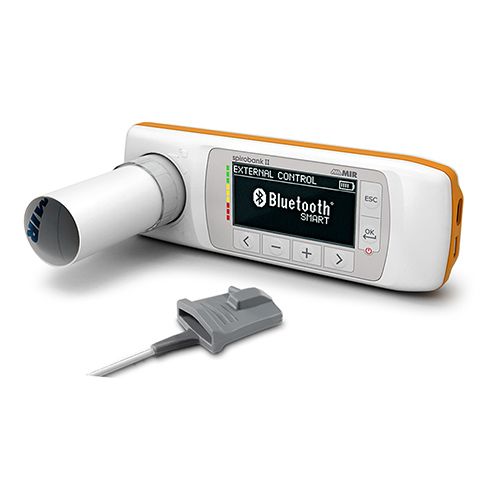

Spirobank II Smart Handheld Spirometer

HANDHELD, STAND-ALONE, TABLET-BASED AND PC-BASED SPIROMETER, WITH OXIMETRY OPTION

The Spirobank II Smart Handheld Spirometer is a versatile spirometer complete with Oximetry Option, with Tablet (iPad and Android) and PC connection. Its has a highly innovative Virtual Assistant available on the Mobile App, which supports the operator before, during and after the spirometry test. Incentive animations are available on your Tablet screen, which support patient compliance during a Spirometry test. Share test results via the App, in PDF or HL7 standards to a remote server.

Features:

ADDITIONAL PREVENTION DURING COVID-19
MIR devices are compatible with the use of disposable in-line filters as recommended by the ERS

PREDICTED SETS AND PREDICTED VALUES
Large Selection of Predicted Sets (including GLI) and Predicted Values (including %Pred, Z-score and LLN) in Tablet-mode and PC-mode

EHR CONNECTIVITY
Via PC: integration with patient database on your EHR/EMR (in HL7, GDT) Via APP: transfer data to a remote server in HL7 standards

REAL-TIME TEST ON APP
On App: Spirometry: FVC, VC, PRE/POST Bronchodilator comparison Oximetry (optional): Spot test (SpO2, BPM)

INTUITIVE APP FOR SPIROMETRY AND OXIMETRY
Including Virtual Assistant, data transfer via HL7, Calibration check and more

CARRY EVERYWHERE
HR Display, long battery life, large internal storage, carrying case included

PC AND TABLET CONNECTION
Real time test on Tablet screen and PC screen, connect with your EHR/EMR, back-up internal memory, and much more

COMPLIANCE WITH ATS/ERS 2019
And other Standards including ISO 26782 (for Spirometry), ISO 23747 (for PEF), ISO 80601-2-61 (for Oximetry), and more

Specifications:

Connectivity: Bluetooth® 4.0, USB 2.0
Display Type: LCD monochrome, 160 × 80 pixel
Keyboard: Membrane keyboard with 6 keys
Flow sensor: Bi-directional digital turbine
Flow range: ±16L/s
Volume Accuracy: ±2.5% or 50 mL
Flow accuracy: ±5% or 200 mL/s
Dynamic resistance: <0.5 cm H2O/L/s
Temperature sensor: Semiconductor (0-45°C)
Test available: FVC, VC, IVC, MVV, PRE-POST
Measured parameters: ELA, ERV, EVOL, FEF25, FEF25-75, FEF50, FEF75, FEF75-85%, FET, FEV0.5, FEV0.5/FVC%, FEV0.75, FEV0.75/FVC%, FEV1, FEV1/FEV6%, FEV1/FVC%, FEV1/VC%, FEV2, FEV2/FVC%, FEV3, FEV3/FVC%, FEV6, FIF25, FIF50, FIF75, FIV1, FIV1/FIVC%, FIVC, FVC, IC, IRV, IVC, MVV, PEF, R50, RR, te, ti, ti/t-tot, TV, TV/ti, VC, VE, Vext
Memory: 10,000 readings

Contents:

Carrying case
USB cable
Noseclip
PC Software license

With Oximetry Option:
Finger Probe
