Minispir + 1 Reusable Turbine

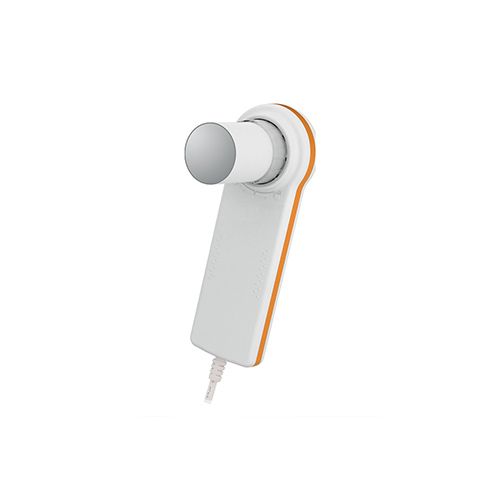

Minispir PC-Based Spirometer

The Minispir PC-Based Spirometer is a complete spirometer with EHR connectivity and accurate readings, designed for software based medical solutions. It has real-time Flow/Volume and Volume/Time curves on your PC for a comprehensive Spirometry. The Minispir includes a wide range of selectable parameters, spirometry test interpretation and Quality Control Grade according to the latest Spirometry standards with embedded temperature sensor for BTPS conversion.

Features:

REAL-TIME TEST
Spirometry: FVC, VC, IVC, MVV, PRE/POST Bronchodilator comparison.

PLUG AND PLAY
Power via USB, no internal memory, no display, no maintenance, carrying case included.

PC CONNECTION
Real time test on PC screen, connect with your EHR/EMR, back-up database on PC memory and much more.

COMPLIANCE WITH ATS/ERS 2019
And other Standards including ISO 26782 (for Spirometry), ISO 23747 (for PEF), and more.

ADDITIONAL PREVENTION DURING COVID-19
MIR devices are compatible with the use of disposable in-line filters as recommended by the ERS.

PREDICTED SETS AND PREDICTED VALUES
Large Selection of Predicted Sets (including GLI) and Predicted Values (including comparison %Pred, Z-score and LLN) in PC-mode.

EHR CONNECTIVITY
Via PC, integration with patient database on your EHR/EMR (in HL7, GDT).

Specifications:

Connectivity: USB 2.0
Display Type: None
Flow sensor: Bi-directional digital turbine
Flow range: ±16L/s
Volume Accuracy: ±5% or 200 mL/s
Dynamic resistance: <0.5 cm H2O/L/s
Temperature sensor: Semiconductor (0-45°C)
Test available: FVC, VC, IVC, MVV, PRE-POST
Measured parameters: ELA, ERV, EVOL, FEF25, FEF2575, FEF50, FEF75, FET, FEV1, FEV1/FEV6, FEV1/FVC%, FEV1/VC, FEV3, FEV3/FVC, FEV6, FIV1, FIV1/FIVC, FIVC, FVC, IC, IRV, IVC, MVV, PEF, Rf, te, ti, ti/t-tot, VC, VE, VT, VT/tI

Contents:

Carrying case
Noseclip
PC Software license
